§ 01 — Overview

A published technical atlas.

Each surface element of the validation track corresponds to a precision shop drawing. This microsite presents them as an atlas of plates, with the complete Method of Statement, ITP and HSE plan as the supporting commentary.

Figure 01

1,100m²

Track footprint

Figure 02

204m³

20 MPa concrete

Figure 03

165m³

Aggregate base course

Figure 04

≈ 600LM

Continuous joint

Figure 05

770pcs

Kerbstones

Figure 06

ITP control points

Scope of works

Aggregate Base Course, 20 MPa Pavement, Kerb Plinth, Continuous Contraction Joints, Surface Elements (Cobble, Vienna, Wash Board, Twist, Rope, Angle Iron).

Reference standards

03 30 00Cast-in-Place Concrete
31 23 13.13Aggregate Base Course for Pavement
32 13 73Concrete Paving Joint Sealants
ACI 117Tolerances for Concrete Construction
ASTM C31/C39Concrete Sampling and Compressive Test
EN 1340Concrete Kerb Units

§ 02 — Sequence

Eight steps, in order.

The kerb plinth is poured first — its sharp ink-black edge acts as the side form for the Aggregate Base Course. From that single decision, the rest of the sequence resolves cleanly.

Currently viewing

00Subgrade Handover

Main Contractor

Subgrade Handover

Main Contractor

Subgrade compacted to ≥ 95 % MDD with CBR ≥ 20 %. Joint inspection and IR-01 sign-off.

Kerb Plinth Pour

FloorTech

28 MPa plain concrete plinth, 200 mm thick, flush with FGL. No bedding, no haunching. Sharp edge acts as side form for ABC.

Aggregate Base Course

FloorTech

150 mm ABC laid against the kerb plinth and compacted to 95 % MDD / CBR ≥ 80 %. Hand compactor mandatory at edges.

20 MPa Pavement Slab

FloorTech

180 mm pavement, 20 MPa, slump 75–125 mm, discharge ≤ 32 °C. Local recesses for Wash Board / Twist zones.

Curing

FloorTech

Single coat of curing compound. 7-day continuous wet curing. ACI 117 Class C tolerance.

Continuous Contraction Joint

FloorTech

20 mm wide × ≥ 45 mm deep saw-cut, while green. Sealed after 30-day cure with elastomeric joint sealant.

Kerbstone Installation

FloorTech

Blue and Yellow precast kerbstones bedded on the 28 MPa plinth, aligned to centerline.

Surface Elements

FloorTech

Cobble, Vienna, Wash Board, Twist, Rope and Angle Iron installed per individual section MoS.

§ 03 — Plates

Six section details, drawn to scale.

Hover any callout to read the engineering note. Click any plate to open the full-screen lightbox with pan and zoom — useful for site review or projecting on screen during coordination meetings.

Plate index

Plate 01 / 06Scale 1:5 / 1:150

Concrete Pavement

Base slab build-up — kerb plinth, ABC, 20 MPa pavement

The reference build-up for the entire validation track footprint. The 200 mm 28 MPa kerb plinth is poured first to act as a hard edge form for the 150 mm Aggregate Base Course, which is then compacted with hand-held equipment along the edges. The 180 mm 20 MPa pavement slab is poured against the inner kerb face and finished flush with the top of kerb (T.O.K).

Key dimensions

Kerb plinth thickness: 200 mm
Pavement thickness: 180 mm
ABC thickness: 150 mm
Joint width: 20 mm
Joint spacing: ≤ 2,000 mm

Hold / Witness Points

Hold Point H-01: Subgrade handover from Main Contractor. Hold Point H-02: Kerb plinth setting-out. Witness Point W-01: ABC compaction test (DCP / Sand-Cone).

Detail

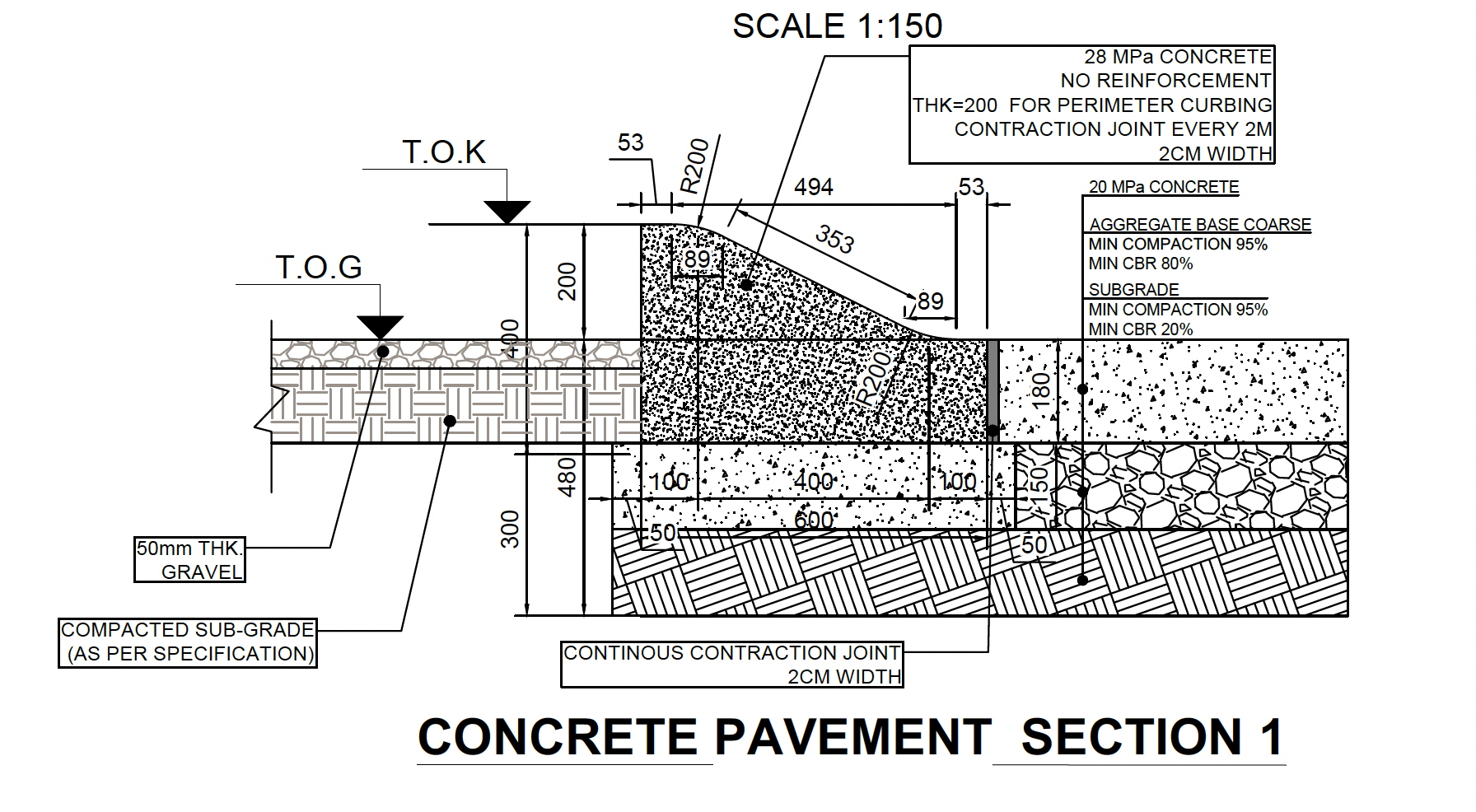

Concrete Pavement — Section 1

Drawn by

FloorTech / GEG

Scale

1:5 / 1:150

Plate

01 / 06

Joint

20 mm

28 MPa Kerb Plinth

Plain concrete 28 MPa, no reinforcement, 200 mm thick perimeter curbing. Continuous contraction joint every 2 m, 20 mm wide.

20 MPa Pavement

Slump 75–125 mm, w/cm ≤ 0.55, discharge temp ≤ 32 °C. 7-day continuous wet curing. Single curing-compound coat per approved comments.

Aggregate Base Course

150 mm ABC, min compaction 95 % MDD, min CBR 80 %.

Continuous Contraction Joint

20 mm wide × ≥ 45 mm deep saw-cut. Sealed after 30-day cure with elastomeric sealant on closed-cell PE backer rod.

Compacted Subgrade

Existing soil reworked by Main Contractor. Min 95 % MDD, CBR ≥ 20 %. Handed over under signed IR-01.

Plate 02 / 06Scale 1:5

Rope Section

Cast-in continuous plate for rope eye-bolt anchorage

Test surface that simulates a transverse rope barrier. Per the approved revision, the 101 mm × 6 mm thick galvanized steel plate is cast continuously into both sides of the slab during the pour — eliminating post-installed drilling and ensuring full pull-out capacity. A galvanized eye-bolt with hex nut and washer threads through the plate, securing the rope assembly.

Key dimensions

Cast-in plate: 101 W × 6 THK (continuous both sides)
Eye-bolt: Galvanized, hex nut + washer
Plate weld: Field weld to plate
Joint width: 20 mm

Hold / Witness Points

Hold Point H-05: Pre-pour inspection of plate position, alignment and tack welds. Witness Point W-04: Pull-out test on first installed eye-bolt set.

Detail

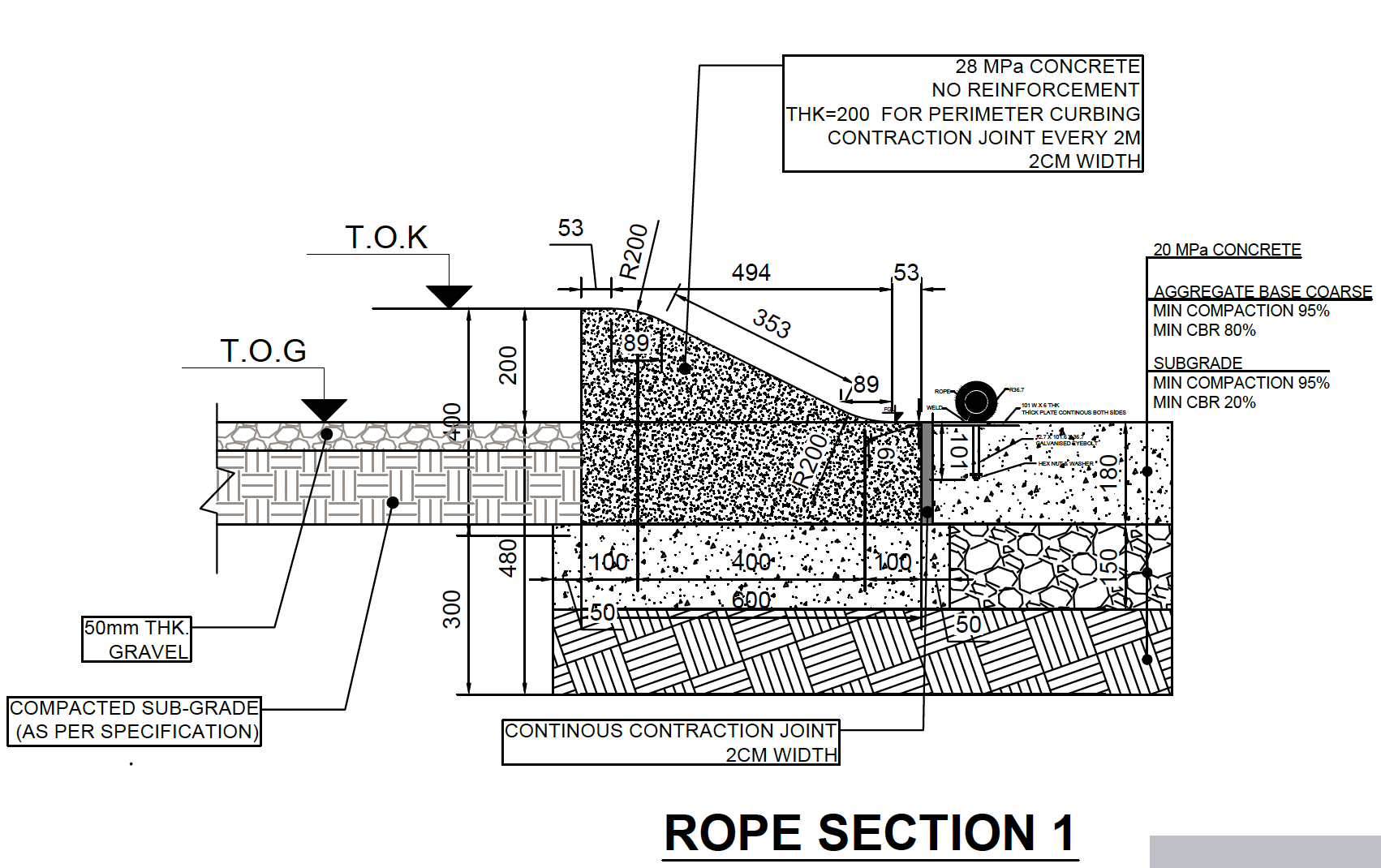

Rope Section — Section 1

Drawn by

FloorTech / GEG

Scale

1:5

Plate

02 / 06

Joint

20 mm

28 MPa Kerb Plinth

Plain concrete 28 MPa, no reinforcement, 200 mm thick perimeter curbing. Continuous contraction joint every 2 m, 20 mm wide.

101 W × 6 THK Plate

Galvanized steel plate cast-in continuous on both sides during the pour. No drilling. Welded to the eye-bolt assembly on site.

Galvanized Eye-Bolt

Threaded through the cast-in plate; receives hex nut + washer + R36.7 rope. Torque to manufacturer spec.

Aggregate Base Course

150 mm ABC, min compaction 95 % MDD, min CBR 80 %.

Compacted Subgrade

Existing soil reworked by Main Contractor. Min 95 % MDD, CBR ≥ 20 %. Handed over under signed IR-01.

Plate 03 / 06Scale 1:5

Vienna Block / Cobblestone

Natural stone surface bedded on 10 mm mortar

Heritage-stone test zones simulating European cobble road textures. The 20 MPa pavement slab is held down by the stone thickness so the finished stone surface aligns precisely with FGL. A 10 mm cement-mortar bed receives each Vienna Block or natural cobblestone, hand-set to a tight running pattern.

Key dimensions

Mortar thickness: 10 mm
Stone thickness: Per approved sample (typ. 80 mm)
Joint width: 20 mm pavement contraction joint

Hold / Witness Points

Hold Point H-06: Stone first-line approval. Witness Point W-05: Joint widths and surface flatness within ±3 mm under 3 m straight edge.

Detail

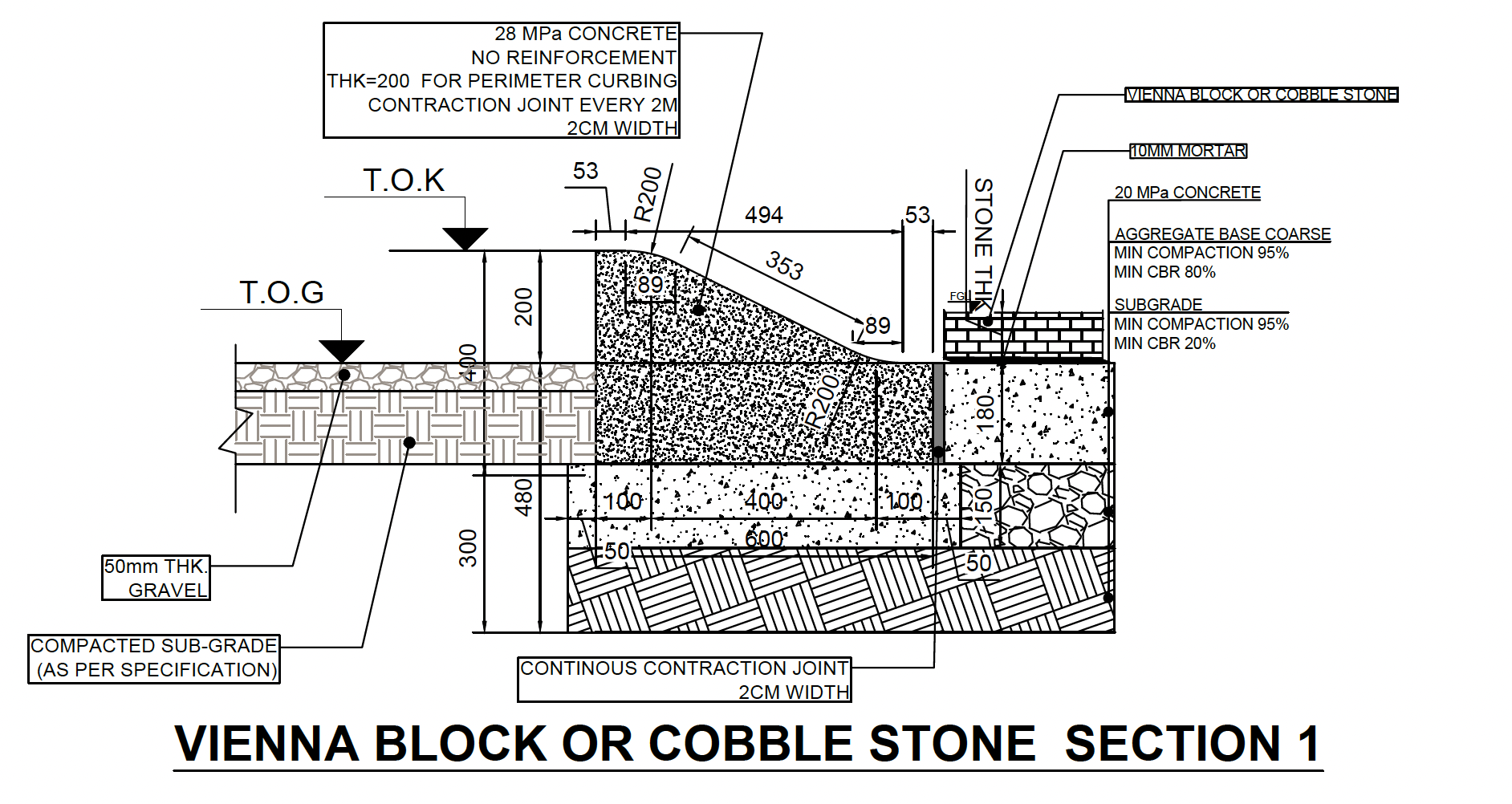

Vienna Block / Cobblestone — Section 1

Drawn by

FloorTech / GEG

Scale

1:5

Plate

03 / 06

Joint

20 mm

28 MPa Kerb Plinth

Plain concrete 28 MPa, no reinforcement, 200 mm thick perimeter curbing. Continuous contraction joint every 2 m, 20 mm wide.

Vienna Block / Cobble

Natural stone face flush with FGL. Pattern, color and thickness per approved mock-up. Sand-broom finish to joints.

10 mm Mortar Bed

Cement mortar 1:3, full bed, no voids, struck wet to receive stone.

Aggregate Base Course

150 mm ABC, min compaction 95 % MDD, min CBR 80 %.

Compacted Subgrade

Existing soil reworked by Main Contractor. Min 95 % MDD, CBR ≥ 20 %. Handed over under signed IR-01.

Plate 04 / 06Scale 1:5

Wash Board

SFRC ridged precast panels on 20 mm screed

High-frequency vibration test surface formed by precast Steel Fibre Reinforced Concrete (SFRC) panels with parallel ridges (R25 mm radius). The base slab is recessed locally and a 20 mm cement screed levels the bedding. Panel dimensions per approved revision: 3,048 mm × 608 mm × 104 mm.

Key dimensions

Panel size: 3,048 × 608 × 104 mm
Ridge radius: R25 mm
Ridge spacing: 76 mm centres
Screed thickness: 20 mm

Hold / Witness Points

Hold Point H-07: Panel pre-installation inspection (dimensions, fibre coverage, no surface cracking). Witness Point W-06: Bedding and final level check.

Detail

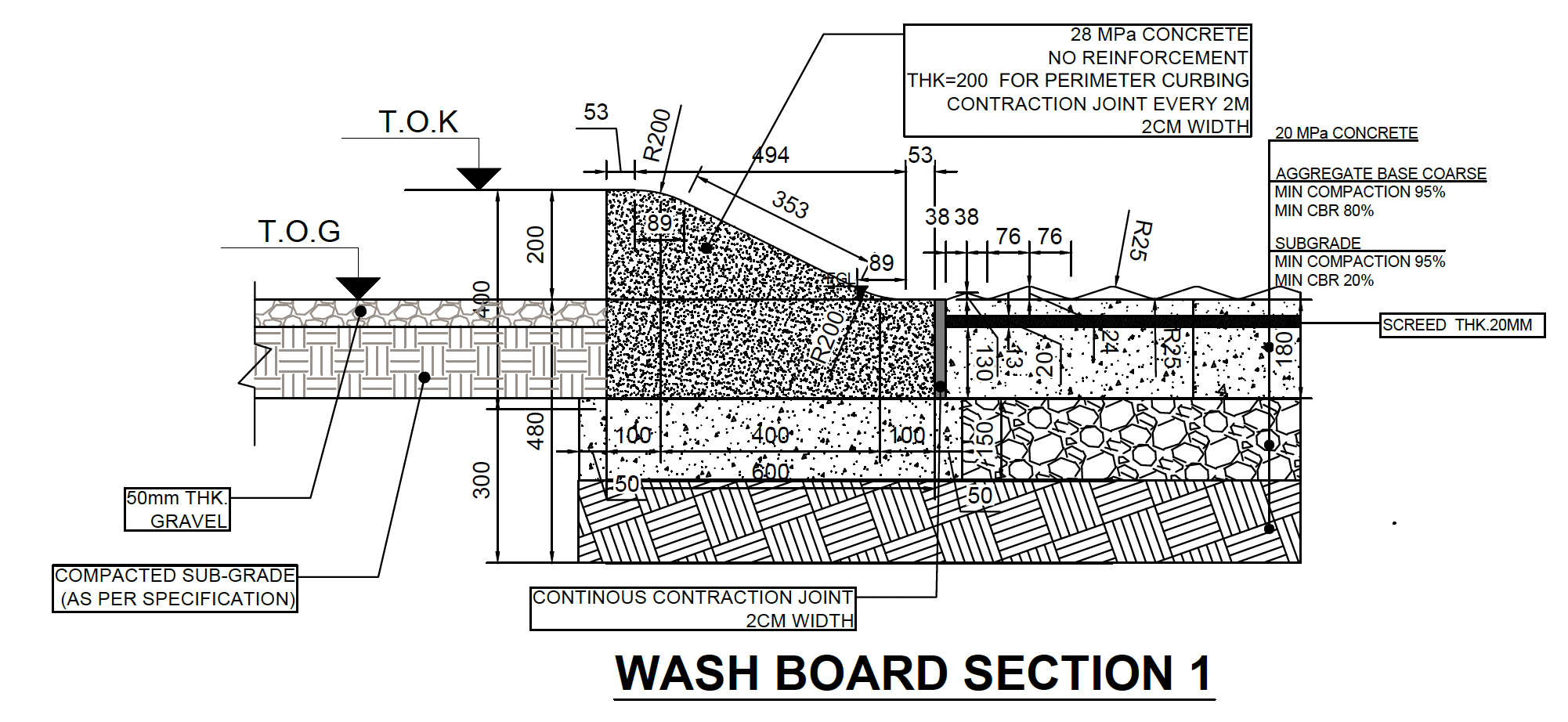

Wash Board — Section 1

Drawn by

FloorTech / GEG

Scale

1:5

Plate

04 / 06

Joint

20 mm

28 MPa Kerb Plinth

Plain concrete 28 MPa, no reinforcement, 200 mm thick perimeter curbing. Continuous contraction joint every 2 m, 20 mm wide.

SFRC Panel

Precast SFRC panel — 3,048 × 608 × 104 mm. Ridge profile R25 mm @ 76 mm o/c. Steel fibre 30–35 kg/m³.

20 mm Screed

Cement screed, struck level under panel, no voids.

Aggregate Base Course

150 mm ABC, min compaction 95 % MDD, min CBR 80 %.

Compacted Subgrade

Existing soil reworked by Main Contractor. Min 95 % MDD, CBR ≥ 20 %. Handed over under signed IR-01.

Plate 05 / 06Scale 1:5

Angle Iron

Cast-in galvanized angle with staggered strap anchors

Sharp-edged transverse strip test. A 50.8 × 50.8 × 9.52 mm × 2,895.6 mm long galvanized steel angle is cast 25 mm proud of FGL. Long strap anchors 36.7 × 6.35 × 203.2 mm are welded to the angle and staggered at 300 mm centres, fully embedded in the 20 MPa pavement to develop pull-out resistance.

Key dimensions

Angle section: 50.8 × 50.8 × 9.52 mm
Angle length: 2,895.6 mm
Strap anchor: 36.7 × 6.35 × 203.2 mm
Anchor spacing: 300 mm staggered
Protrusion above FGL: 25 mm

Hold / Witness Points

Hold Point H-08: Angle alignment, level and weld inspection prior to pour. Witness Point W-07: Pull-out test on representative anchor sample.

Detail

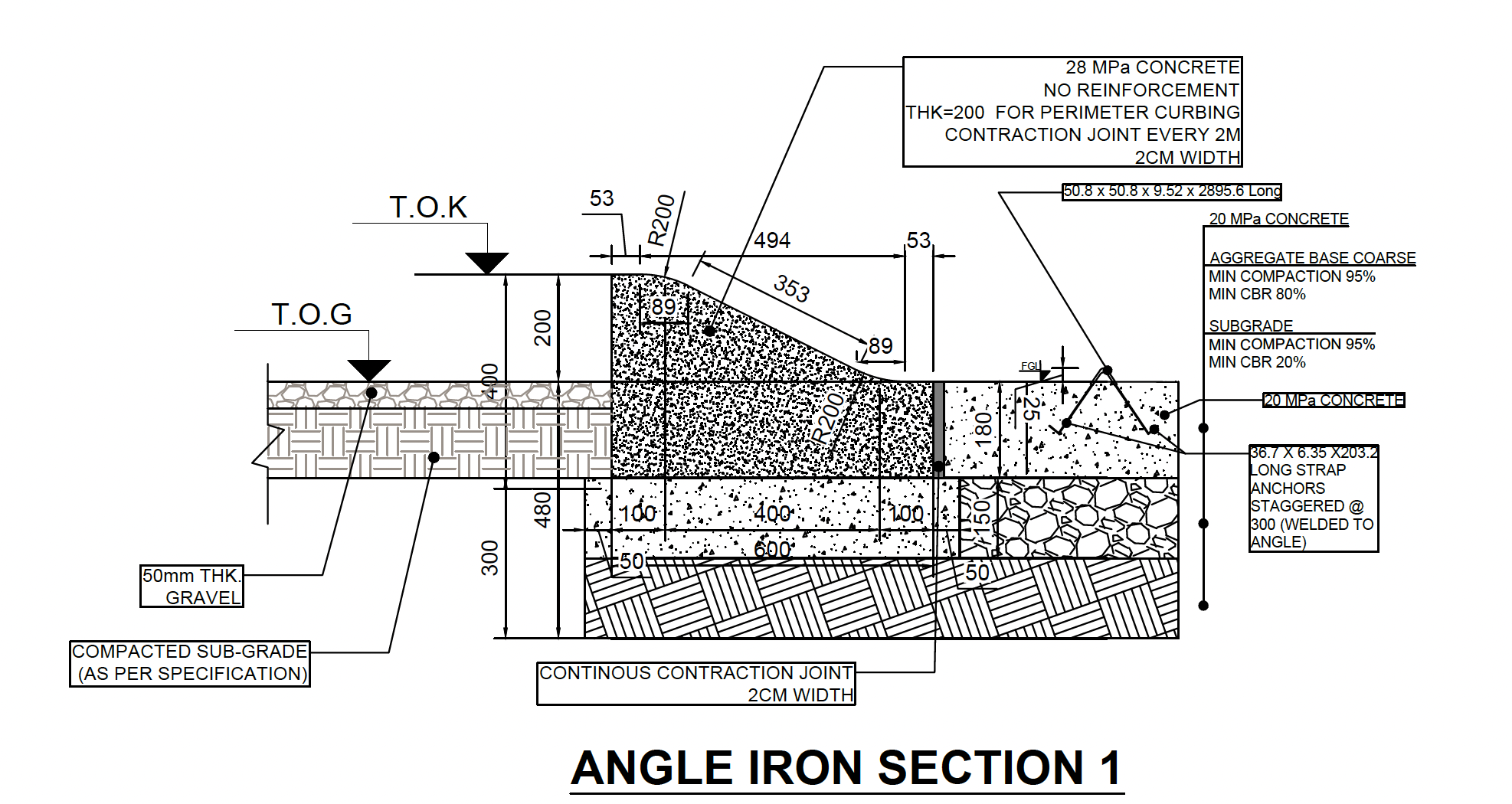

Angle Iron — Section 1

Drawn by

FloorTech / GEG

Scale

1:5

Plate

05 / 06

Joint

20 mm

28 MPa Kerb Plinth

Plain concrete 28 MPa, no reinforcement, 200 mm thick perimeter curbing. Continuous contraction joint every 2 m, 20 mm wide.

Galvanized Angle

L 50.8 × 50.8 × 9.52 mm, 2,895.6 mm long. Cast 25 mm above FGL. Welded to strap anchors below.

Strap Anchors

36.7 × 6.35 × 203.2 mm. Welded to angle, staggered at 300 mm centres, embedded in 20 MPa pavement.

Aggregate Base Course

150 mm ABC, min compaction 95 % MDD, min CBR 80 %.

Compacted Subgrade

Existing soil reworked by Main Contractor. Min 95 % MDD, CBR ≥ 20 %. Handed over under signed IR-01.

Plate 06 / 06Scale 1:5

Twist Board

Precast diagonal-twist plates on 20 mm screed

Body-twist axle articulation test. Precast diagonal-twist plates rise 175 mm above FGL (per approved revision, reduced from the original 850 mm) and are bedded on a 20 mm cement screed over the recessed 20 MPa pavement. Used in Gravity / Mid-size Only configurations along the straight section.

Key dimensions

Twist height (above FGL): 175 mm
Twist length: 850 mm
Recess depth: 160 mm
Screed thickness: 20 mm

Hold / Witness Points

Hold Point H-09: Twist plate pre-installation inspection. Witness Point W-08: Final geometry & 3D scan vs approved mock-up.

Detail

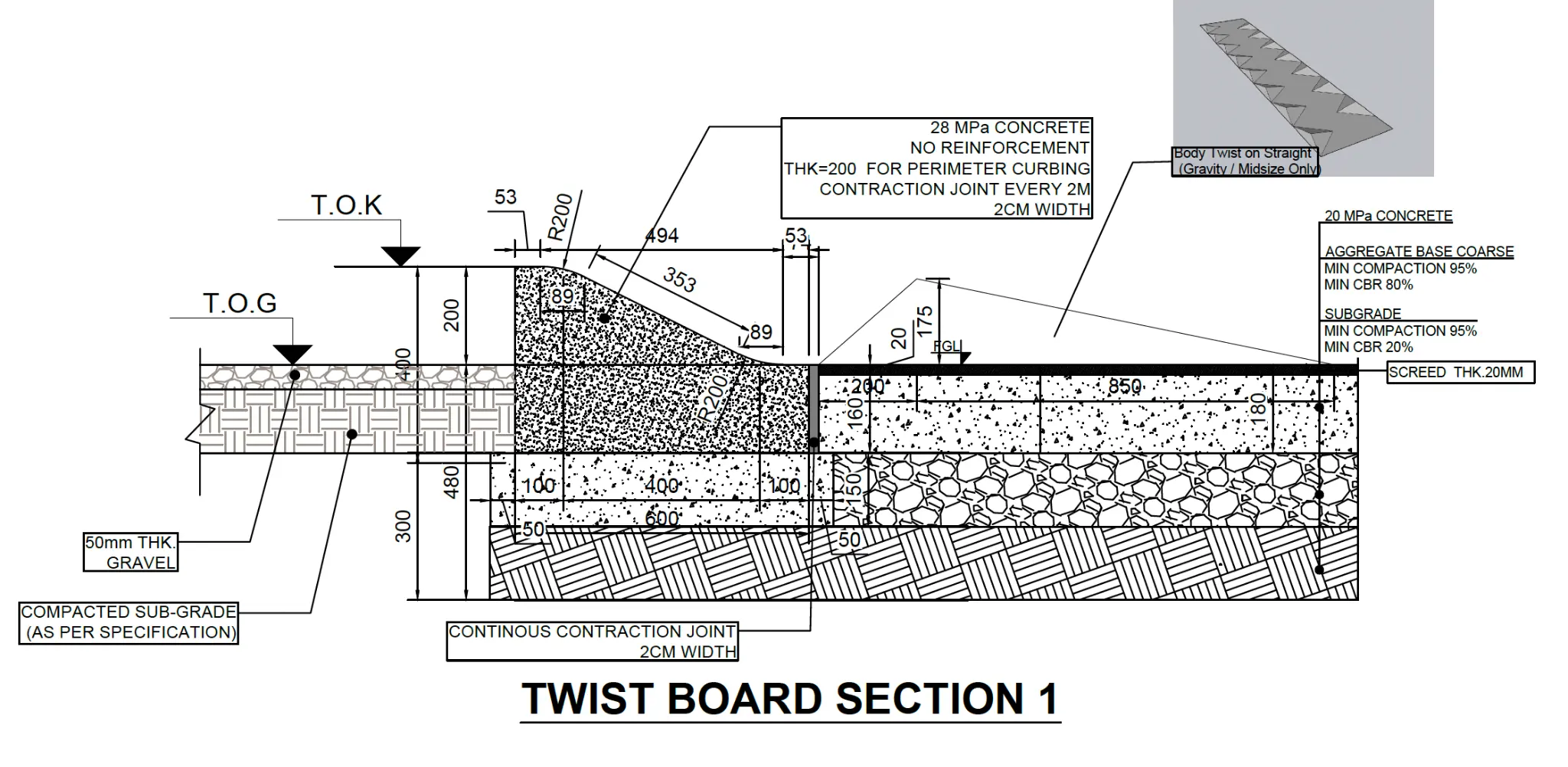

Twist Board — Section 1

Drawn by

FloorTech / GEG

Scale

1:5

Plate

06 / 06

Joint

20 mm

28 MPa Kerb Plinth

Plain concrete 28 MPa, no reinforcement, 200 mm thick perimeter curbing. Continuous contraction joint every 2 m, 20 mm wide.

Twist Plate (175 mm)

Precast diagonal-twist plate. Top of element 175 mm above FGL. Approved Gravity / Mid-size only.

20 mm Screed

Cement screed, full bed under plate.

Aggregate Base Course

150 mm ABC, min compaction 95 % MDD, min CBR 80 %.

Compacted Subgrade

Existing soil reworked by Main Contractor. Min 95 % MDD, CBR ≥ 20 %. Handed over under signed IR-01.

§ 04 — ITP

Inspection & Test Plan.

Eighteen control points spanning subgrade handover through final twist-board geometry — with every Hold gate requiring Consultant sign-off before progressing.

Hold

Witness

Surveillance

Ref	Activity	Criteria	Type
H-01	Subgrade Handover	Compaction ≥ 95 % MDD, CBR ≥ 20 %, levels ±15 mm	Hold
H-02	Kerb Plinth Setting-Out	Centerline, top level, alignment ±5 mm	Hold
W-01	ABC Compaction Test	Sand-cone / DCP at 250 m² grid	Witness
H-03	Pre-Pour Inspection (20 MPa)	Forms, levels, joints, embedded items	Hold
W-02	Concrete Sampling	Slump, temp, air; cubes per ASTM C31	Witness
S-01	Curing Compound Application	Single uniform coat, no bare spots	Surveillance
W-03	Saw-Cut Joints	Width 20 mm ± 1, depth ≥ 45 mm, straightness ± 3 mm	Witness
H-04	Kerbstone Setting-Out	Line, level, joint widths per shop drawing	Hold
H-05	Rope Plate Pre-Pour	Plate alignment, weld quality, anchor spacing	Hold
W-04	Eye-Bolt Pull-Out Test	Achieves design pull-out load	Witness
H-06	Stone First-Line Approval	Pattern, joint width, flatness ± 3 mm / 3 m	Hold
W-05	Vienna / Cobble Final QC	Surface flatness, joint sand fill	Witness
H-07	SFRC Panel Pre-Installation	Dimensions, fibre coverage, no cracks	Hold
W-06	SFRC Panel Bedding	Final levels, no voids under panel	Witness
H-08	Angle Iron Pre-Pour	Alignment, level, weld inspection	Hold
W-07	Angle Anchor Pull-Out	Sample test per batch	Witness
H-09	Twist Board Pre-Install	Geometry vs approved mock-up	Hold
W-08	Twist Board Final Geometry	3D scan vs approved tolerance	Witness

§ 05 — HSE

Risk Register.

Hot-weather scheduling, daily toolbox talks and permits-to-work for hot works and lifting operations frame all site activity at KAEC — in line with the KSA Ministry of HR summer working hour regulations.

PPE Standard: hard hats, safety boots, high-visibility vests, safety glasses and gloves — mandatory across all FloorTech work zones.

Hazard

Heavy Plant Operation

Risk

Crushing / collisions

Mitigation

Trained banksmen, reversing alarms, segregated walkways, certified operators.

Hazard

Concrete Pouring

Risk

Chemical burns / dermatitis

Mitigation

Rubber boots, gloves, long sleeves, immediate washing facilities.

Hazard

Manual Handling

Risk

Musculoskeletal injuries

Mitigation

Mechanical lifting aids for precast; team-lift protocols.

Hazard

Hot Weather (KAEC)

Risk

Heat exhaustion / stroke

Mitigation

Heat stress plan, hydration monitoring, work scheduled for cooler hours.

Hazard

Dust Generation

Risk

Respiratory issues

Mitigation

Water spraying on ABC and access roads, dust masks during cutting.

Hazard

Precast Lifting

Risk

Falling units, crush injuries

Mitigation

Certified lifting equipment, exclusion zone, qualified rigger, daily LOLER check.

Hazard

Concrete Pump Operations

Risk

Line burst / pressure release

Mitigation

Daily inspection, certified operator, exclusion zone.

Hazard

Hot Works (Welding)

Risk

Burns, fire, eye injury

Mitigation

Permit-to-work, fire watch, screens, welding helmet, leather gloves.

Hazard

Saw-Cutting

Risk

Cuts, silica dust, noise

Mitigation

Wet cutting only, hearing protection, silica-rated dust mask, daily blade guard inspection.

§ 06 — Drawing

The reference drawing.

The single shop drawing that governs every section in this atlas — kerbstone arrangement plan, six pavement section details, and constructive build-up. Click to open or download the PDF.

[email protected]

Drawing · PDF · A1 sheet

Kerbstone Arrangement & Pavement Section Drawing

LCIDKSA-CBU-ABCC-EXTL-SHD-CIV-10002-00-FT01
